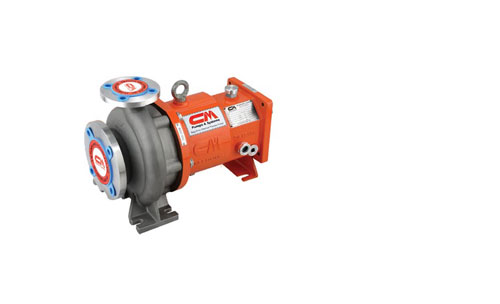

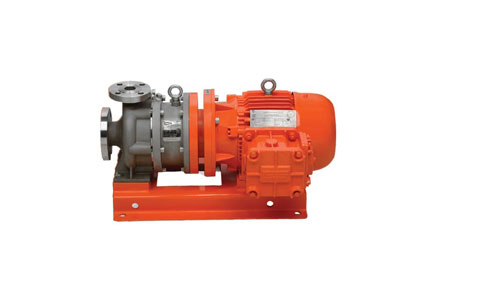

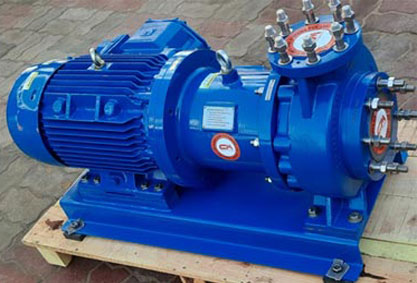

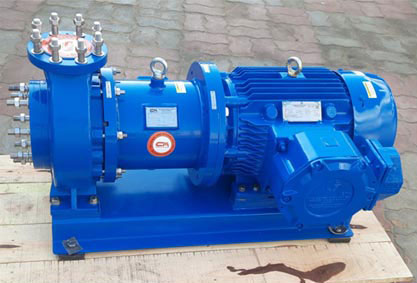

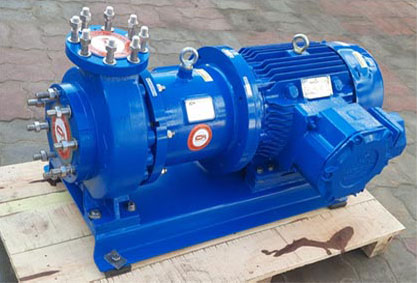

Magnetic Drive Chemical Process Pumps Dealer

Description
• Single Stage, Horizontal Centrifugal Pumps
• Hydraulic Performance and Dimensions according to DIN EN ISO 2858
• Technical design based on DIN EN ISO 15783
• Permanent Magnet Drive
• Maintenance Free
• Separation of Liquid Chamber to Atmosphere by Means of Isolation Shell
• Slipless Power Transfer
• Materials : Steel, Stainless Steel, Nickel Based Materials
• Close Coupled Block Design
• Hydraulically balanced impeller for minimum bearing loads
• Product-Lubricated Journal Bearings; made of Silicon Carbide (SSiC) or Customized Materials

Technical Range:
• Flow Rate : max. 100m/h
• Delivery Head : max. 100 metre
• Pressure Rating : Class 150
• Temperatures : -35°C to +250°C
• Kinematic viscosities : 0.5 to 350 mm/s

Casing & Impeller Materials
• Stainless steel SS 316, SS 316L, SS 304, SS 304L, Other materials duplex alloys , nickel-base alloys (e.g. Hastelloy )
• Working Principle : Radial flow pump
• Stages : Single stage
• Priming Method : Flooded suction
• Sealing System : Magnetic coupling
• Standards : DIN EN ISO 2858 /ANSI
• Standards : DIN EN ISO 15783 /ANSI
• ATEX : 2014/34/EU
